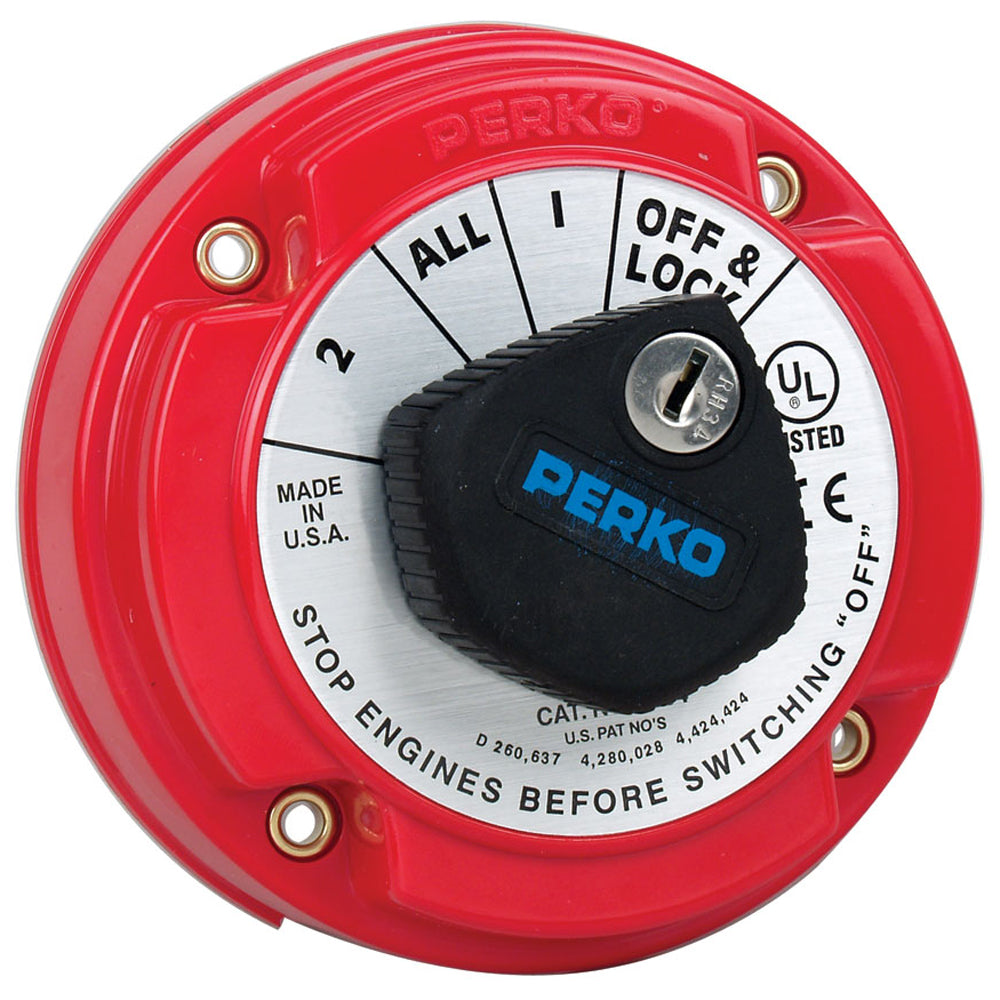

The Perko 8504DP is a medium-duty battery selector switch that lets you choose which battery or bank runs the boat (1, 2, BOTH, or OFF) and adds two features cheaper switches skip: an alternator field disconnect that helps protect the alternator if the switch is turned while the engine runs, and a key lock so nobody can switch power on without you.
Who it’s for
- Two-battery boats that want a manual selector at the helm or in the engine space
- Boats left at docks or moorings where a lockable OFF position adds security
- Replacing a worn or corroded selector switch
Key features
- For 6–32V marine electrical systems
- 250A continuous, 360A intermittent for 5 minutes
- Alternator field disconnect
- Key lock
- 5/16 in terminal studs
- About 5-1/4 in diameter x 2-5/8 in deep
- Ignition protected
Installation tips
-
Match cable size to the load. Size battery cables for the full current and run length, and use proper lugs on the 5/16 in studs.
-
Wire the field disconnect correctly. The alternator field disconnect only protects the alternator if it is connected to the alternator’s field circuit per the instructions.
-
Turn it only with the engine off unless your system is designed for it.
Related: battery and power · marine wiring · battery monitoring guide
Before ordering
Confirm system voltage, alternator type, cable size, current draw, and the mounting space available. If you don’t need the key lock, see the Perko 8503DP.
What you're getting
Brand: Perko
Part Number: 8504DP
Fulfillment: Ships from a U.S. marine distribution warehouse
Warranty: Manufacturer warranty terms vary by brand and product
