Marine-grade circuit protection from Blue Sea Systems. Built for the demands of saltwater, vibration, and continuous DC loads — not generic automotive fuses.
Key benefits
Protects expensive marine electronics from short circuits
Corrosion-resistant for saltwater environments
ABYC-compliant marine construction
What you're getting
Brand: Blue Sea Systems Part Number: 5194 Fulfillment: Ships from a U.S. marine distribution warehouse Warranty: Manufacturer warranty terms vary by brand and product
Product details

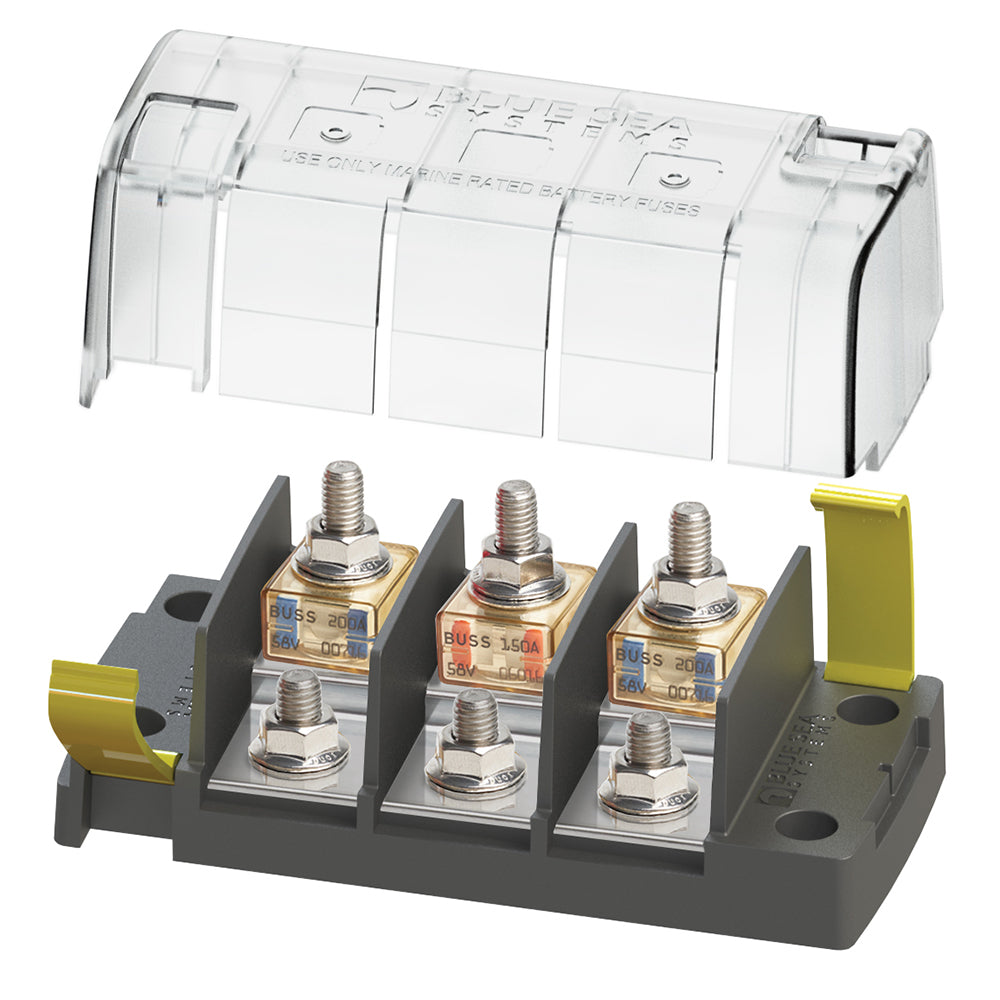

Surface Mount 3 Circuit Fuse Block - Independent Source Surface mount fuse blocks accommodate three MRBF fuses for consolidated high amperage circuit protection The independent source fuse block (5194) is ideal for 3 output battery chargers The common source fuse block (5196) provides 3 loads from a single source Clip-on cover insulates terminal connections Versatile wiring options allow all wires to come out a single side Label recesses for easy circuit identification One-piece stainless flange nuts ensure safe and secure connections Specifications Ignition Protected: Yes Maximum Amperage: 240 per circuit Maximum Voltage: 58v DC Maximum Torque: 100 in-lb Terminal Stud Size: M8 (5/16"-18)
