Ships from U.S. warehouse via CWR Distribution. Manufacturer warranty applies when included by the brand.
Marine-grade circuit protection from Blue Sea Systems. Built for the demands of saltwater, vibration, and continuous DC loads — not generic automotive fuses.
Key benefits
Protects expensive marine electronics from short circuits
Corrosion-resistant for saltwater environments
ABYC-compliant marine construction
What you're getting
Brand: Blue Sea Systems Part Number: 5046 Ships from: CWR Distribution (authorized dealer) Warranty: Full manufacturer warranty
Product details

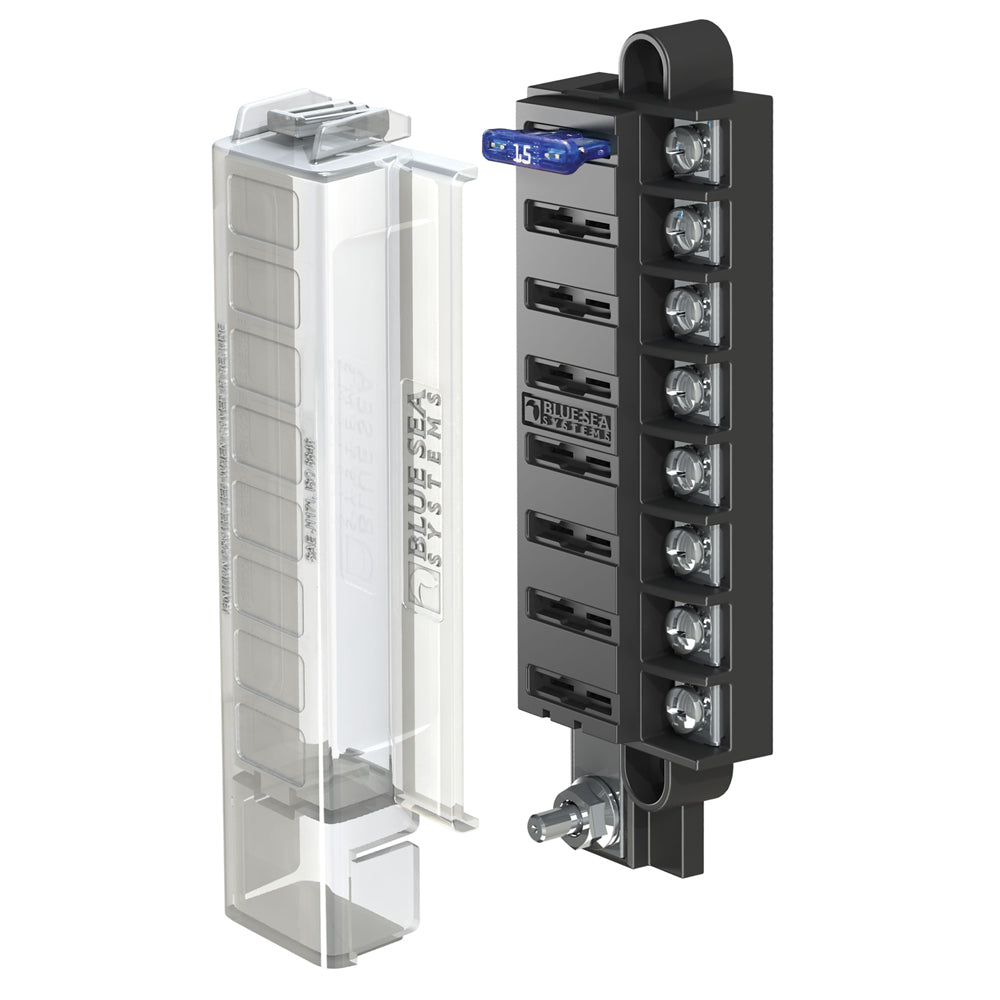

ST Blade Compact Fuse Blocks - 8 Circuits w/Cover Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space. Compact common source fuse block Accepts ATO® and ATC® fast acting blade fuses Single side entry wiring Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment Insulating cover meets ABYC/USCG insulation requirements Tin-plated copper buses and fuse clips Accepts ring or snap fork type terminals Small format standard and custom labels available Specifications Circuits: 8 Maximum Amperage: 100A per block / 30A per circuit Maximum Voltage: 32V DC Mounting: #8 Screw (M4) Screw Terminal Torque: #8-32 Screws with captive star lock washer in-lb (0 Nm) WARNI
Shipping & returns
Free shipping on orders over $199. Standard shipping $9.95 flat. Ships within 1 business day from our supplier's warehouse. Full manufacturer warranty coverage — we handle warranty claims for you as your authorized dealer. Questions? Call or email — real human support, no chatbots.
